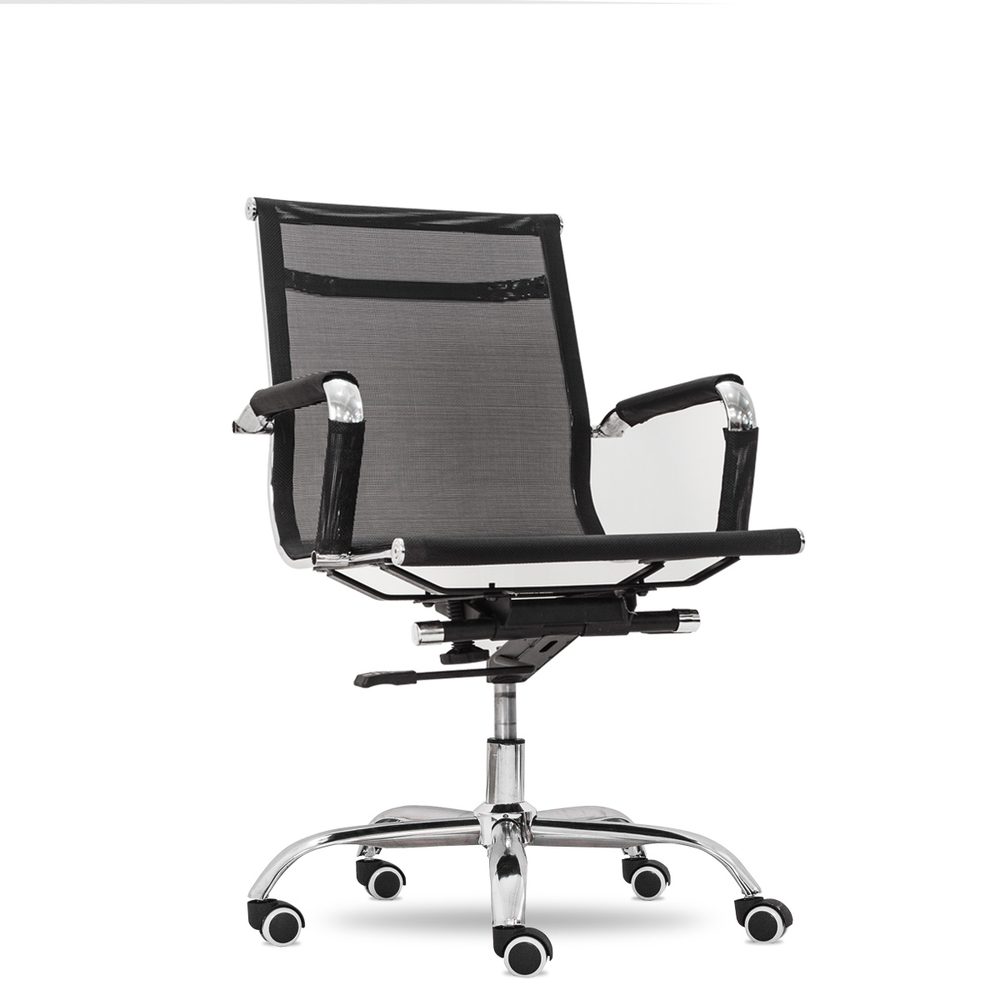

Middle Back Mesh Office Swivel Chair - GX17

Description of Middle Back Mesh Office Swivel Chair - GX17

Middle back office swivel chair. A line of high-quality mesh-back office chairs manufactured and assembled using advanced machinery processes, with a team of skilled workers and engineers with long-term knowledge and experience, along with creativity and unique designs.

Specifications :

Advantage

• The chair frame is sturdy and strong when machined from high-quality iron material to help prevent the inner cushion from falling off when there is a strong impact.

• The middle backrest is designed to form a curve that hugs the body, helping to optimally support the spine, chest, and neck, bringing safety to the sitter.

• The thick, soft, spacious foam seat cushion gives the sitter the best sitting posture, limiting pressure on the spine and coccyx when sitting for long periods of time.

• The backrest cushion is covered with high-quality simili with the advantages of softness, high elasticity and no peeling, during long-term use.

• The fixed square chair arms are made from sturdy, durable iron, combined with simili gloves attached to the outside to create an impressive highlight for the chair.

• The 5-wing swivel chair's legs are sturdy and durable, meticulously machined from chrome-plated steel that does not rust, vibrate, and has excellent resistance to high loads. Nylon plastic wheels move quickly, maintain balance and provide good noise protection.

• Modern plastic wheels have the ability to move flexibly under many different types of floors, clinging to the floor properly to create balance for the person when rotating 360 degrees.

• The chair is equipped with a smart 1-lever mattress recliner controller, users can lock it in place to fix a certain working position, change height - low.

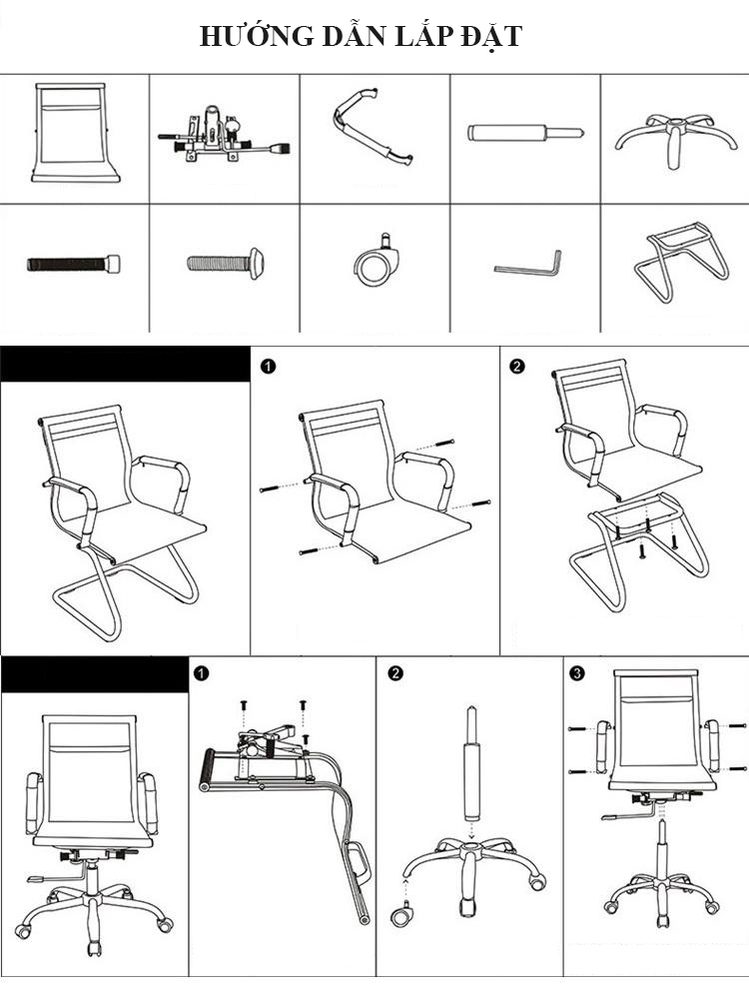

Assembly Instructions

Assembly of Components: To Assemble into a Chair

Step by Step Assembling a Chair

Step 1: Screw the "back panel" and the two arms of the chair together (Use Trung Screw).
Step 2: Push the "seat cushion" from above down, into the middle of the two arms of the chair. Then screw the 4 screws at the bottom of the "seat cushion" into the 2 arms of the chair. (Long Snail).
Step 3: Turn the star leg upside down on the floor. Install 5 mini wheels onto the 5 fixing bolts at the top of the wing.
Step 4: Gently place the lifting piston into the center hole of the star leg
Step 5: Install the "Control cluster" to the bottom of the "seat cushion" (Central Screw). Note: The adjustment lever is located on the right hand side of the chair. After installing the "control assembly" to the "seat cushion", attach the "seat body" to the "seat leg" (Coupling: Piston - Control assembly).

INSTRUCTIONS FOR USE

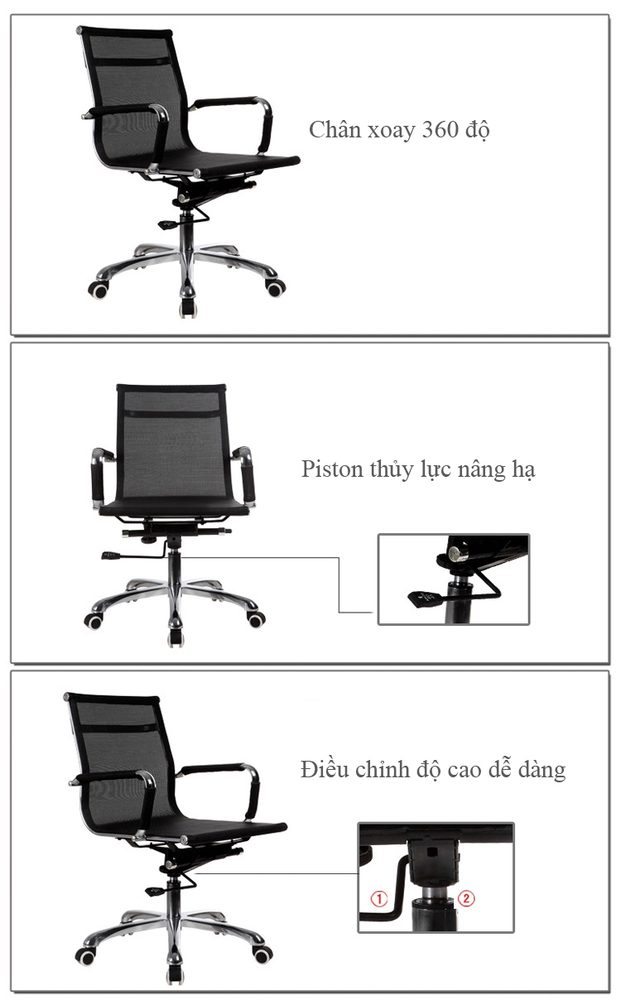

How to adjust height: low office swivel chair. You just need to gently push the lever below the seat cushion, located on the right side of the chair. When you need to raise the chair, you need to stand or leave the seat cushion, use your hand to hold the lever and push up. When you reach the desired height, release your hand and the chair will remain at that height.

Adjusting and lowering the swivel chair: You just need to sit still on the chair and use your hand to push the lever, then pull the lever up towards the seat cushion, until it reaches your desired level, then release your hand. Because the swivel chair lowers its height using the mechanism of using body weight to press down.
